Single Facer Line for 2 ply corrugated sheet

Name: Single Facer Line for 2 ply corrugated sheet
Brand: YIKE GROUP
Price: 1 USD

China Single Facer Line for 2 ply corrugated sheet wholesale

Brand Name : YIKE GROUP

Model Number : YK-1600 SINGLE FACER LINE

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1 Set Single Facer Line

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Sets Per Month

Delivery Time : 30 Days After Deposit of Single Facer Line

Packaging Details : Plastic Film,FCL

equipment size : Lmx4.3*Wmx1.8*Hmx1.6

Work pressure（Mpa） : 16---18Mpa

single weight : MAX4000Kg

the range of clamping paper : MAX1600mm MIN1000mm

After-sales service provided : Engineers available to service machinery overseas,Video technical support,Field maintenance and repair service

Type : Packaging Line

Automatic grade : Automatic

Packaging type : Cartons,Case,Film

Contact Now

Single Facer Line for 2 ply corrugated sheet

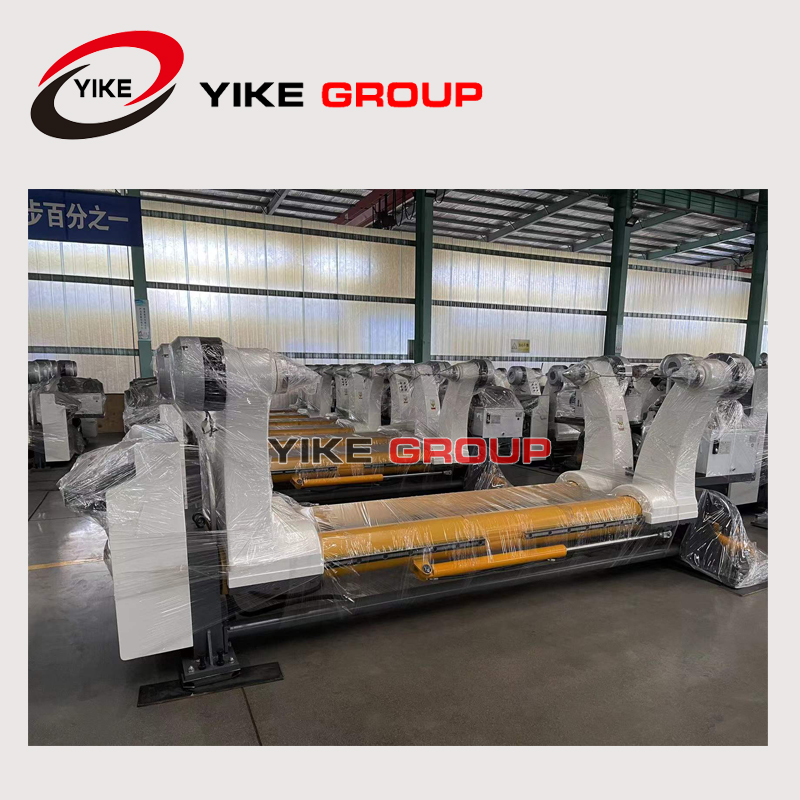

ZJ-V5B hydraulic shaftless mill roll stand

structural feature:

1. Brake adjustable adopts multipoint braking system.

2. Every stand matched two sets paper car , and they can paper on the both sides at the same time.

Hydraulic system parameters:

1. Work pressure(Mpa):16---18Mpa

2. lifting hydraulic cylinder:￠100×440mm

3. Clamping hydraulic cylinder:￠63×1300m

4. hydraulic station motor power:3KW --380V -- 50Hz

5. solenoid valve voltage:220V 50 Hz

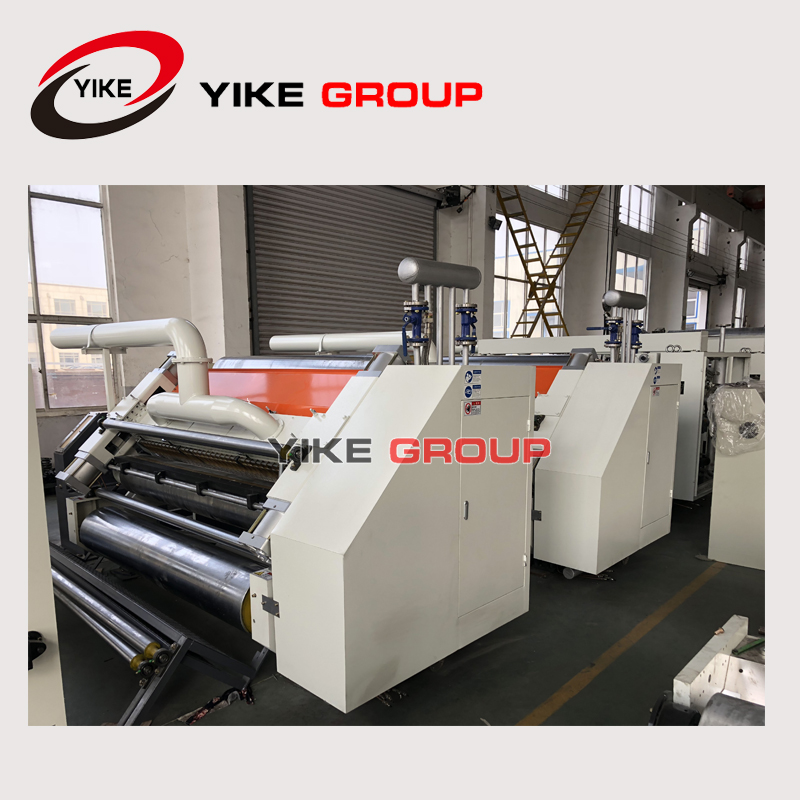

YK-280S fingerless type single facer(Steam heating)

Structural features:

1.Adopt vacuum suction structure, with high pressure strong blower. Suction with silencer.

2.base and wallboard cast iron wall, Wallboard thickness130mm.universal Joints.

roller diameters parameters:

1.diameter of corrugated roller: ￠280mm

2.diameter of pressure roller: ￠284mm

3.diameter of glue roller: ￠216mm

4.diameter of preheat roller: ￠320mm

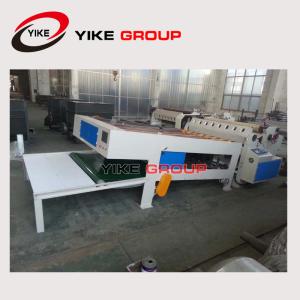

Rotary paper receiving machine

1. the machine receiving the highest speed 70m / min.

2.the maximum length of the machine to receive paper 1350mm.

Single Facer Line for 2 ply corrugated sheet
