Packing Machinery Spare Parts Diaphragm Pump For Printer Machine From YIKE GROUP
Basic Info
| Name | diaphragm pump |
| Power Source | Pneumatic |
| Place of Origin | China |
| Working pressure | 0.15-0.8Mpa |
| Used for | Flexo printer machine |
| Packing | Carton box |
| Color | Silver |
| Brand | YIKE GROUP |
The pump is separated by two sets of left and right diaphragms to separate the left and right air chambers and the medium delivery chamber. When the central axis in the pump body is at the right position, the compressed air enters the left air chamber, while the compressed air in the right air chamber is discharged.
As the pressure in the left chamber increases, the left diaphragm squeezes to the left, increasing the pressure in the left conveying chamber. The medium in the chamber is conveyed upward through the one-way valve and discharged from the outlet, and the one-way valve of the right conveying chamber is closed.
Then the middle axis of the pump body moves to the left to start the next conveying process, cyclically reciprocating, so as to achieve the working purpose of conveying the medium.

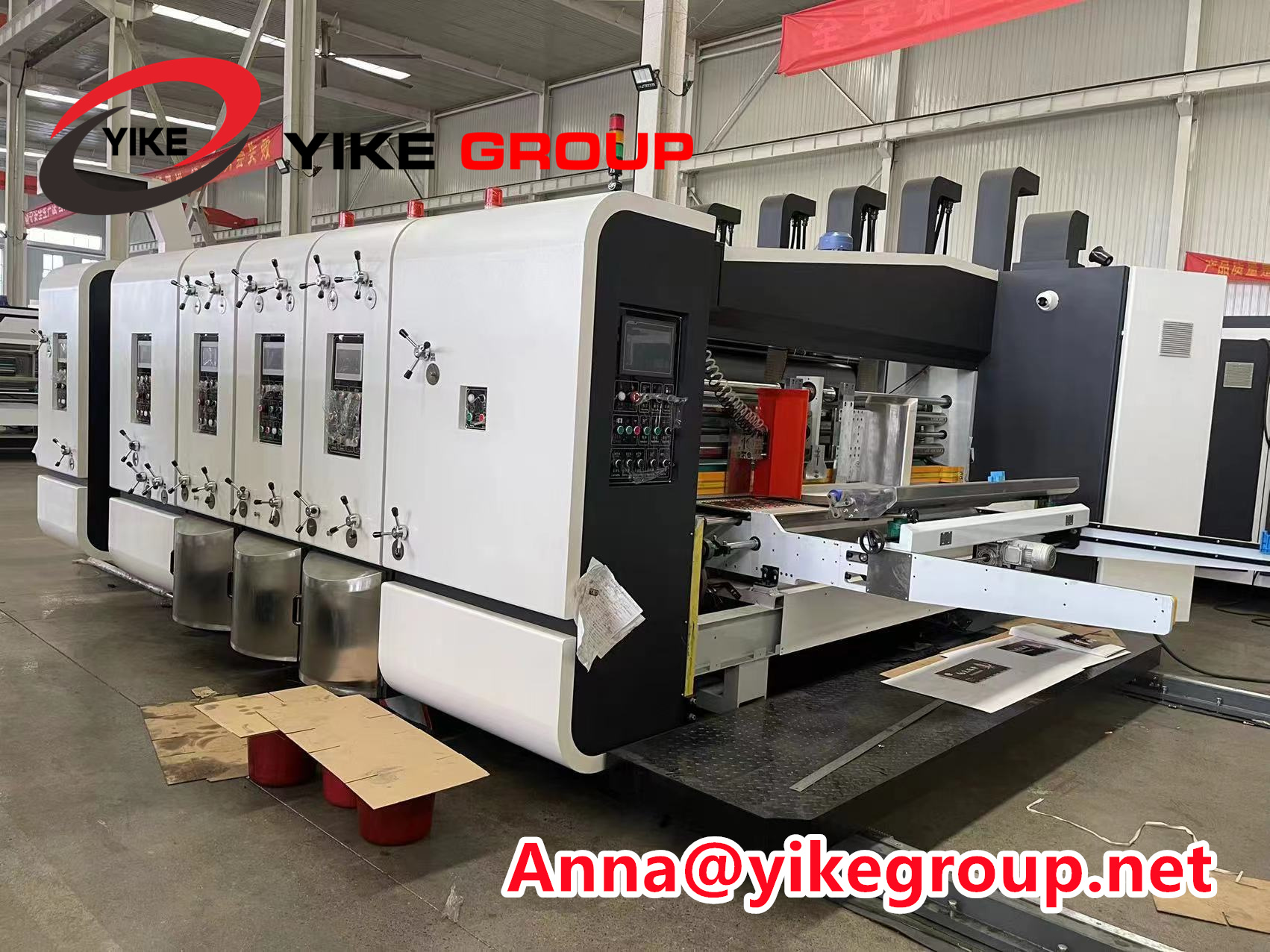

Used For flexo pritter machine
VI: FAQ
Q: Could you provide free sample?
A: Yes, we can provide free sample together with our catalogue. But the courier charge will on your side. We'll send back the courier charge if you make an order.
Q: If the products can be customized?
A: Welcome OEM and ODM service, custom designs and dimensions are acceptable.
Q: How long about the delivery time?
A: Usually the delivery time is 20 days, for mass order,which based on your quantity.
|
|

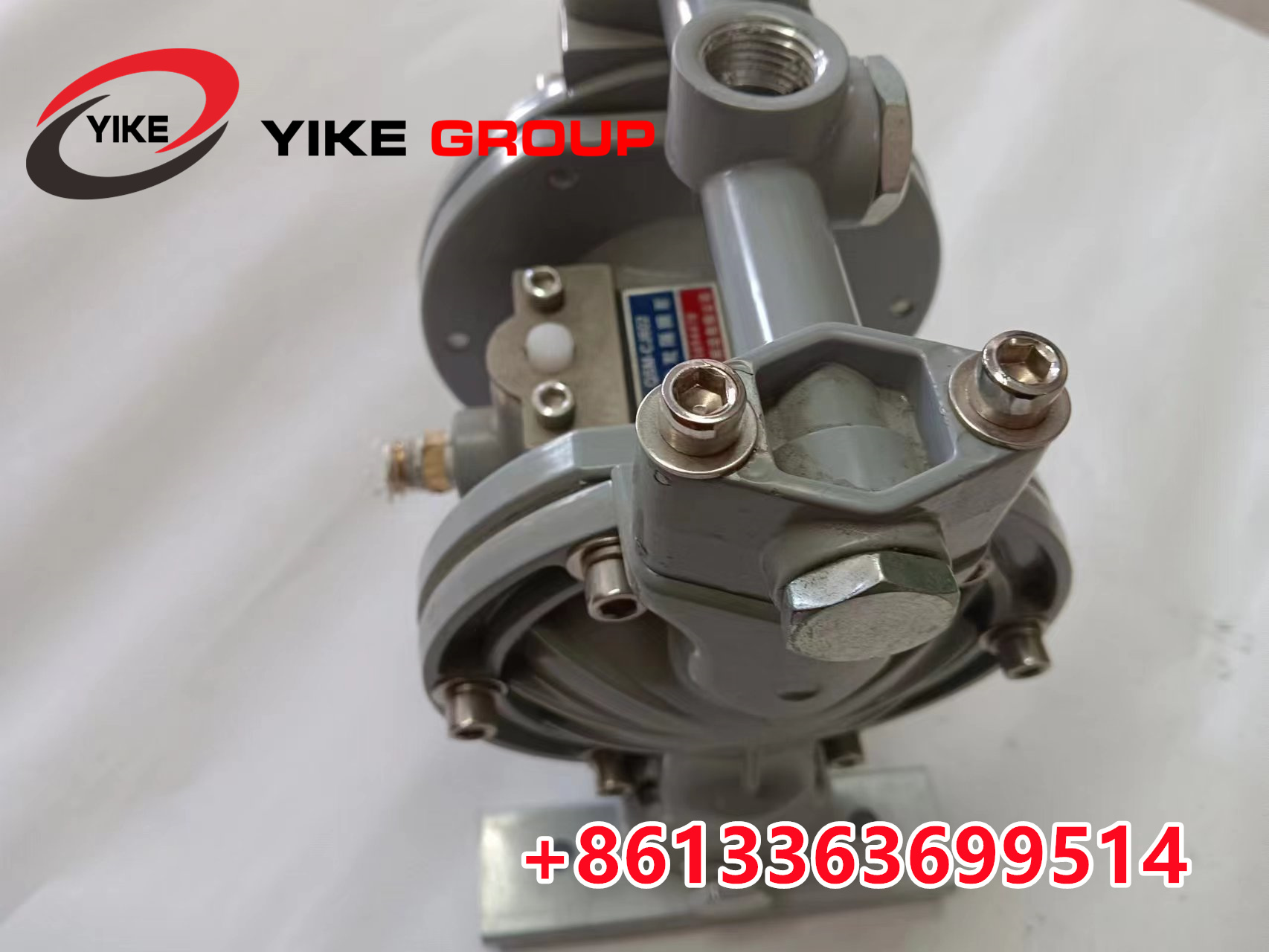

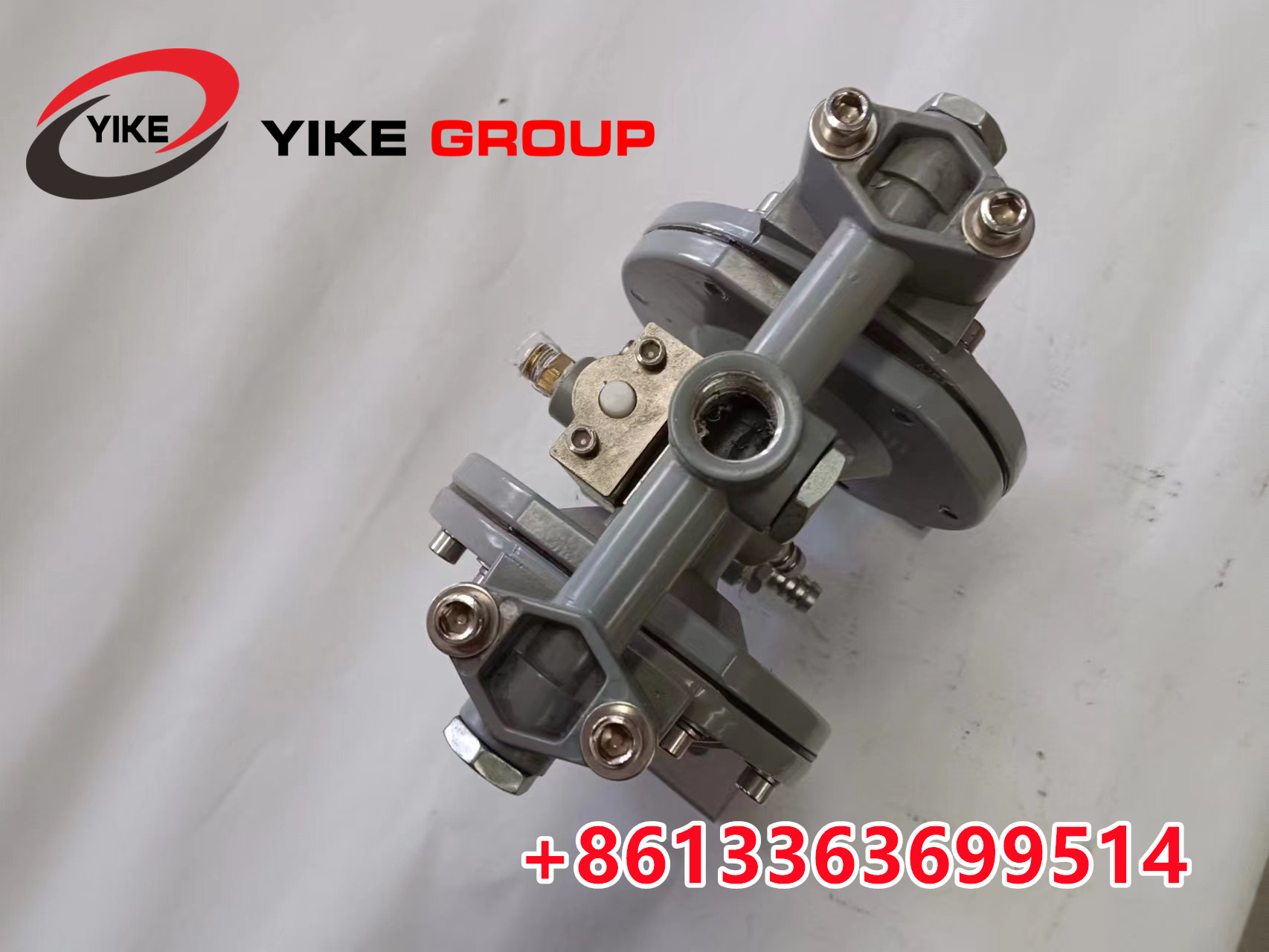

Packing Machinery Spare Parts Diaphragm Pump For printer machine From YIKE GROUP Images
|
