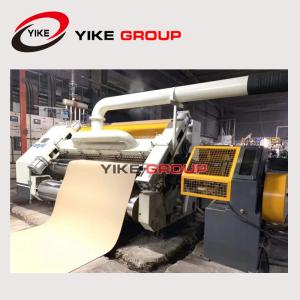

Automatic single facer line from China manufacturers

ZJ-V5B hydraulic shaftless mill roll stand

structural feature:

1. Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

2. Brake adjustable adopts multipoint braking system.

Technical parameter

1. e range of clamping paper:MAX1600mm MIN1000mm

2. clamping diameters:MAX￠1500mm MIN￠350mm

3. main shaft diameter of paper holder:￠242mm

4. gas source work pressure(Mpa):0.4---0.8Mpa

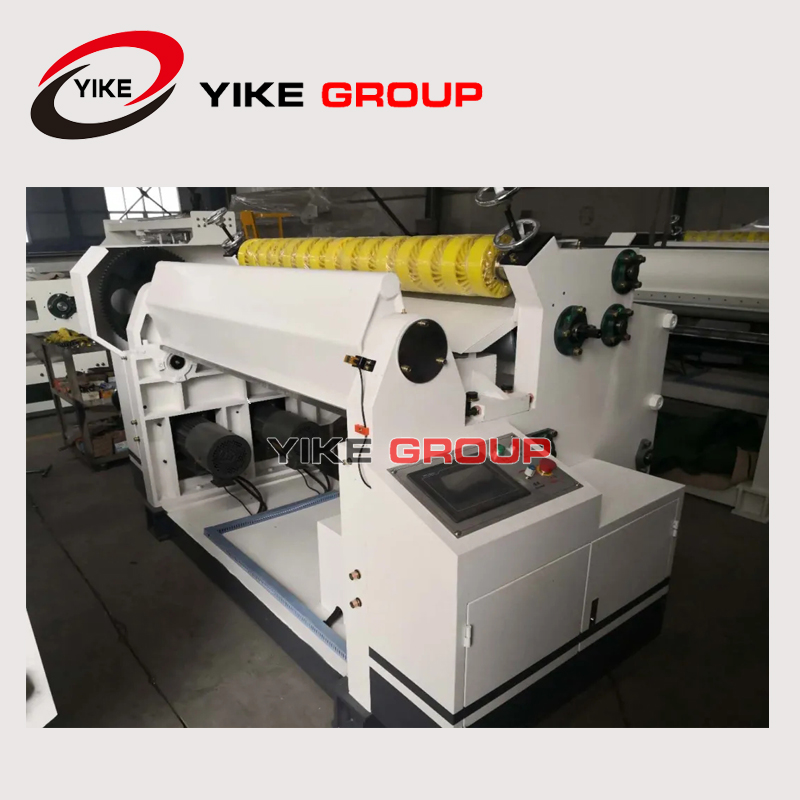

YK-280S fingerless type single facer(Steam heating)

Structural features:

1. Corrugated roller, pressure roller materials provided by the Central Plains Steel,High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder.

2. preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm,connecting with metal Hose.

regular technical parameters:

1. effective width:1600mm

2. operation direction:left or right(determined in accordance with customer plant)

3. design speed:100m/min working speed:60m/min

Rotary paper receiving machine:

1. the machine can achieve automatic points without stopping, automatic stacking, automatic sub-stacker.

2. the maximum stacking height of the local stacking unit is 100mm.
