YIKE GROUP Brand Corrugated Roller 150-200m/min Hard Chrome Type

Name: YIKE GROUP Brand Corrugated Roller 150200mmin Hard Chrome Type
Brand: YIKE GROUP
Price: 1 USD

Brand Name : YIKE GROUP

Model Number : Hard Chrome Type,Tungsten Carbide Type

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 2 Sets Corrugated Roller

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Sets Per Month

Delivery Time : 30 Days After Deposit of Corrugated Roller

Packaging Details : Plastic Film,FCL

Speed : 150-200m/min

Packaging Type : Plastic film

After-sales service provided : Engineers available to service machinery overseas,Video technical support

Flute type : A/B/C/E/F/G flute

Flute paper index : 80g/㎡--160g/㎡

Voltage : 220v/380v/440v

Function : cardboard making production line,Make corrugated cardboard from craft paper

Color : as client's requiremnets

Contact Now

CHINA YIKE GROUP CO.,LTD

Email: anna@yikegroup.net

Whatsapp: +8613363699514

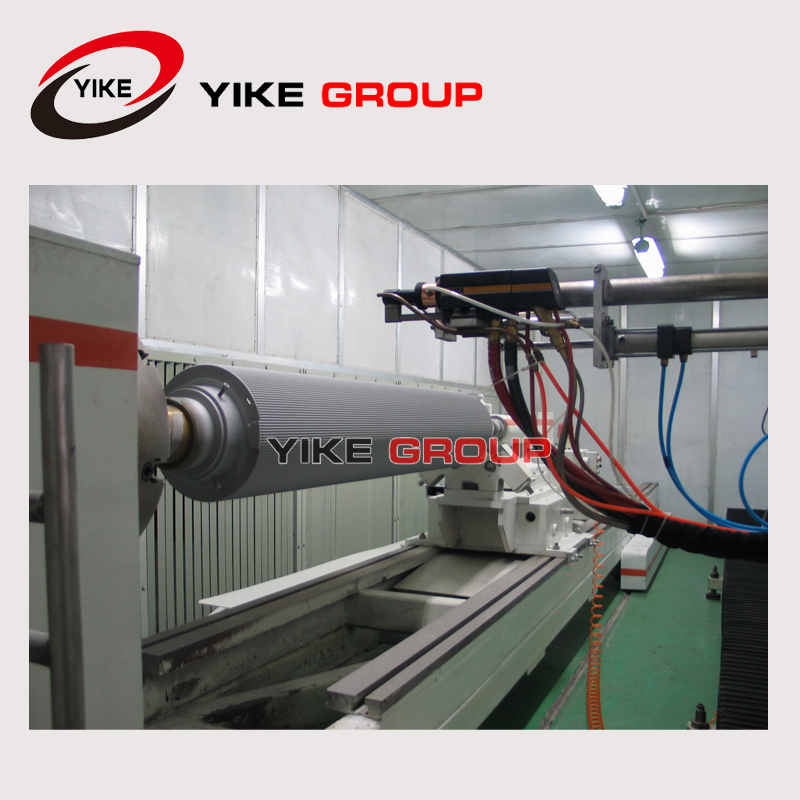

YIKE GROUP Brand Corrugated Roller

Features:

● Type: Hard Chrome & Tungsten Carbide

● Used for carton box corrugator machine-Single Facer

Description

1. Hard Chrome Type Corrugated Roller

● Made of 48 CrMo alloy steel or tungsten carbide with hard treatment by laser,the hardness is above HRC58o-60o

● The surface is well treated by grind and plated chrome.

● Different type of flute according to user's request.

2. Tungsten Carbide Type Corrugated Roller

● Tungsten Carbide corrugated roller with lower flute height, and height of teeth keep for long time, save flute paper and glue capacity, make the paperboard stable quality. More important is the flute height almost not change during whole running life.

Characteristics

Flute	A	C	BC	B	D	E	F	G
Profile	UV	UV	UV	UV	UV	UV	UV	UV
Counts(300mm)	34±2	36±2	44±2	50±2	66±3	96±4	124±10	185±12
Height	4.6-4.9	3.6-3.9	3.0-3.4	2.6-2.9	1.9-2.1	1.1-1.8	0.7-0.8	0.5-0.65
Take Up Rate	1.51-1.59	1.44-1.51	1.42-1.49	1.36-1.42	1.40-1.41	1.29-1.39	1.22-1.26	1.20-1.25

YIKE GROUP Brand Corrugated Roller 150-200m/min Hard Chrome Type
