Hard Chrome Corrugated Roller For 280S Single Facer 150-200m/min

Name: Hard Chrome Corrugated Roller For 280S Single Facer 150200mmin
Brand: YIKE GROUP
Price: 1 USD

Brand Name : YIKE GROUP

Model Number : Hard Chrome Type,Tungsten Carbide Type

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 2 Sets Corrugated Roller

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Sets Per Month

Delivery Time : 30 Days After Deposit of Corrugated Roller

Packaging Details : Plastic Film,FCL

Dimension(l*w*h) : according to customer request

Packaging type : Cartons,Case,Film

Packaging material : Paper,Wood

Warranty : 1 Year

Speed : 150-200m/min

Usage : Making Corrugated Cardboard

Contact Now

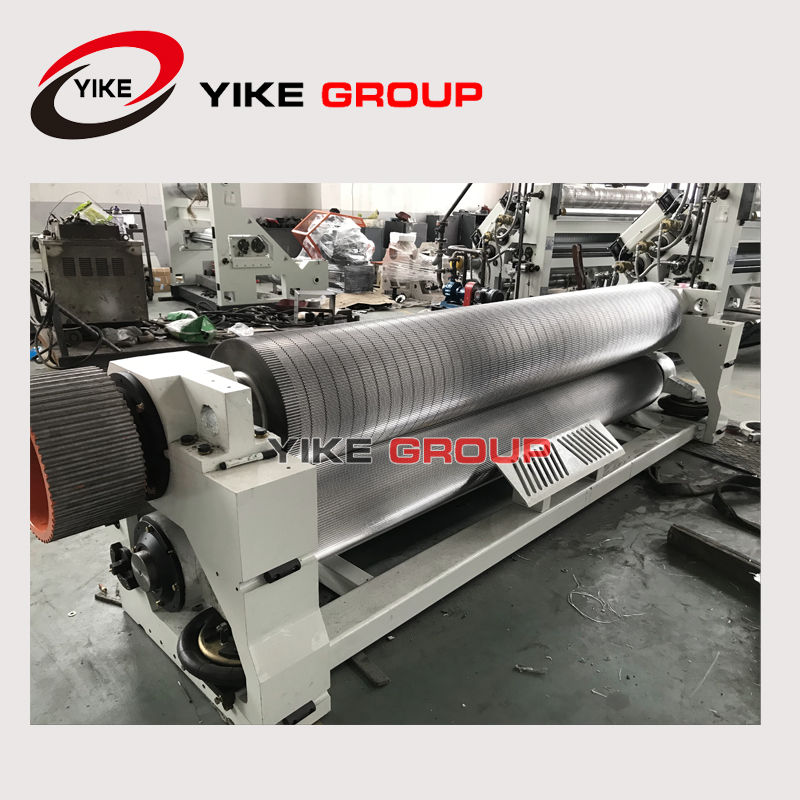

Corrugated Roller For 280S Single Facer

Features:

● High precision hard chrome steel A C B E F G flute corrugated roller

● Type: Hard Chrome & Tungsten Carbide

● Used for carton box corrugator machine-Single Facer

Description

1. Hard Chrome Type Corrugated Roller

● The upper and lower corruagted( corrugating, flute) roller for single facer machine

● Different type of flute according to user's request.

2. Tungsten Carbide Type Corrugated Roller

● With Tungsten Carbide coat on the surface of flute, make the corrugated roller with high wearability. The lifetime of Corrugated Roller become more Longer lifetime.

● Tungsten Carbide corrugated roller with lower flute height, and height of teeth keep for long time, save flute paper and glue capacity, make the paperboard stable quality. More important is the flute height almost not change during whole running life.

Characteristics

Flute	A	C	BC	B	D	E	F	G
Profile	UV	UV	UV	UV	UV	UV	UV	UV
Counts(300mm)	34±2	36±2	44±2	50±2	66±3	96±4	124±10	185±12
Height	4.6-4.9	3.6-3.9	3.0-3.4	2.6-2.9	1.9-2.1	1.1-1.8	0.7-0.8	0.5-0.65
Take Up Rate	1.51-1.59	1.44-1.51	1.42-1.49	1.36-1.42	1.40-1.41	1.29-1.39	1.22-1.26	1.20-1.25
