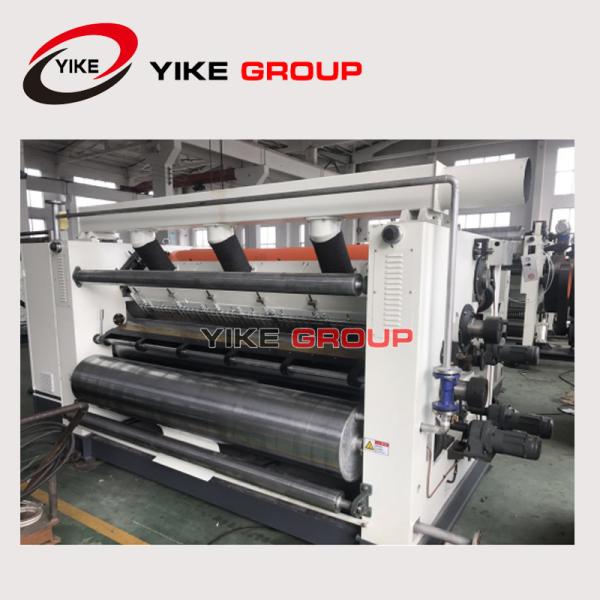

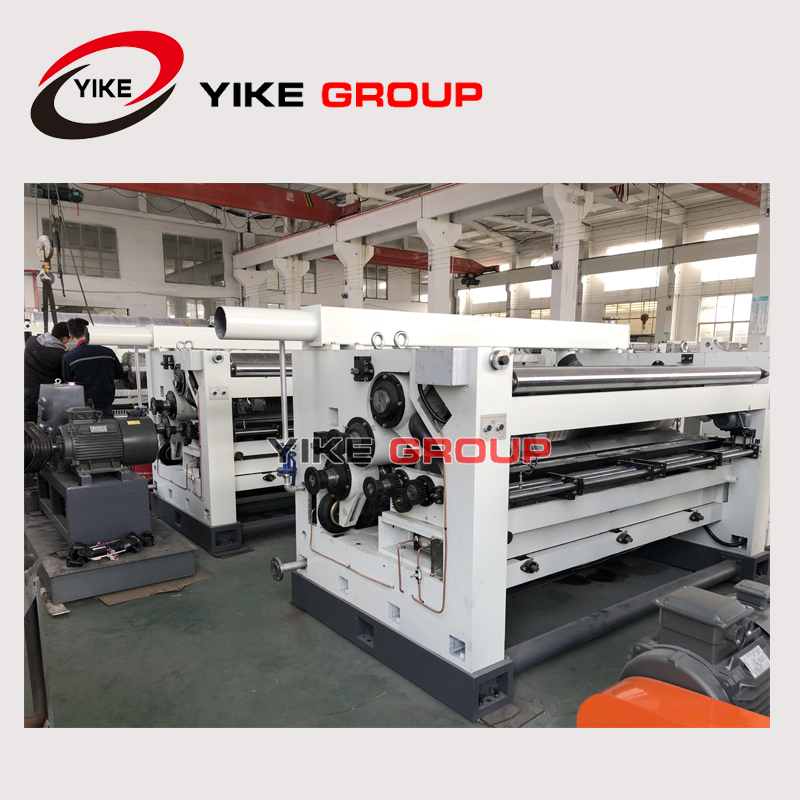

YK-320F Fingerless Adsorption Type Single Facer For 3 Ply Corrugated Cardboard Production Line

Product Categories

CHINA YIKE GROUP CO.,LTD

Contact Now

Name: YK320F Fingerless Adsorption Type Single Facer For 3 Ply Corrugated Cardboard Production Line
Brand: YIKE GROUP
Price: 1 USD

Brand Name : YIKE GROUP

Model Number : YK-320F/360F

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1 Set single facer machine

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Delivery Time : 30 Days After Deposit of single facer machine

Packaging Details : Plastic Film,FCL

Supply Ability : 30 set per month

Other name : Single facer machine

Condition : New

After-sales service provided : Engineers available to service machinery overseas,Field maintenance and repair service

Type : Packaging Line

Automatic grade : Automatic

Driven type : Electric

Application : Machinery & Hardware

Speed : 150m/min

Contact Now

YK-320F Fingerless Adsorption Type Single Facer In 3 Ply Corrugated Cardboard Production Line

technical parameters:

1.effective width:1800mm

2.operate direction:left or right(Determined in accordance with the customer's facility)

3.design speed:150m/min

4.range of temperature:160—180℃

5.air source:0.4—0.9Mpa

6.steam pressure:0.8—1.3Mpa

7.equipment:Lmx3.5*Wmx1.7*Hmx2.2

Roller diameter parameters:

1,corrugated roller:up￠313mm down￠316mm pressure roller:￠320mm

2 ,glue roller:￠240mm fixed paste roller: ￠140mm preheat roller:￠402mm

Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	material
wallboard	Production by own	HT250
Transmission box	hebei	QT450
Corrugated roller		Alloy steel corrugated
Rotation joint and Metal Hose	Fujian quanzhou yujie
Main frequency motor	Hebei hengshui yongshun motor factory
Reducer motor	Taiwan chengbang
Bearings	HRB,ZWZ,LYC
Corrugated roller and pressure roller bearing	America Timken
Seat belt bearing	Zhejiang wuhuan
High pressure fans	Shanghai yingfa motor factory
cylinder	Zhejiang sonor CSM
Solenoid valve	Zhejiang sonorCSM
traps	beijing	Inverted bucket type
contactor	France schneider
button	Zhengtai NP2 series
Air switch	French schneider
Position Sensor	JapanOMRON
Frequency controller	Taiwan delta
PLC	Taiwan delta
Human Machine Interface	Taiwan WEINVIEW or MCGS
Lose rubber pump	Hebei botou
