Name: Vacuum Adsorption Single Facer For 3ply Corrugated Paperboard Production Line
Brand: YIKE GROUP
Price: 1 USD

Brand Name : YIKE GROUP

Model Number : YK-280S

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1 Set Single Facer

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 Sets Per Month

Delivery Time : 30 Days After Deposit of Single Facer

Packaging Details : Plastic Film,FCL

After-sales service provided : Engineers available to service machinery overseas,Video technical support,Field maintenance and repair service

Type : Packaging Line

Automatic grade : Semi-Automatic Single Facer

Application : Machinery & Hardware

Dimension(l*w*h) : according to customer request

Packaging type : Cartons,Case,Film

Packaging material : Paper

Warranty : 2 Years

Contact Now

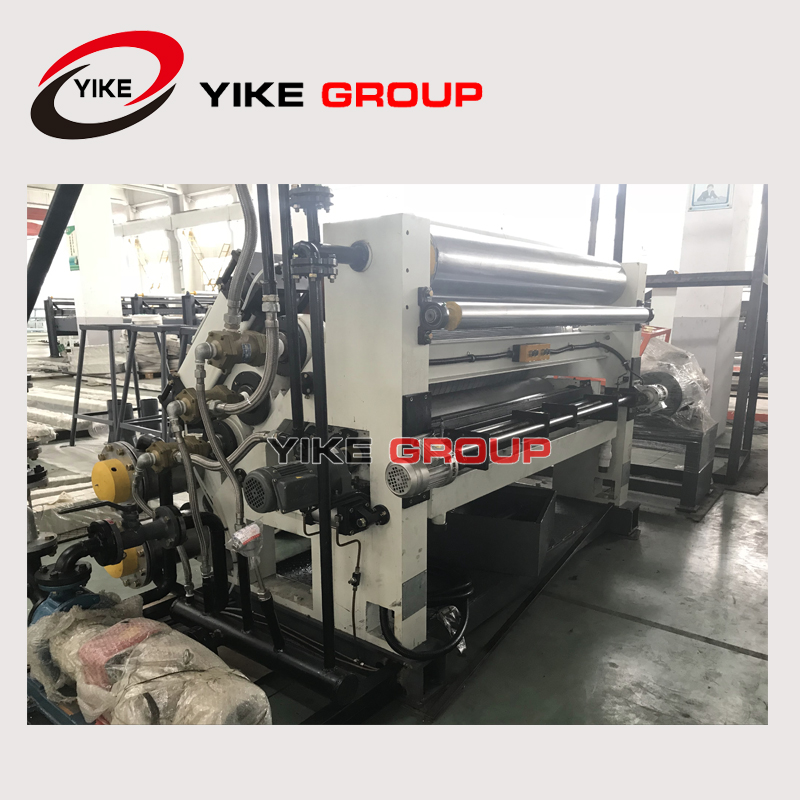

Vacuum Adsorption Single Facer For 3ply Corrugated Paperboard Production Line

roller diameters parameters:

1.diameter of corrugated roller: ￠280mm

2.diameter of pressure roller: ￠284mm

3.diameter of glue roller: ￠216mm

4.diameter of preheat roller: ￠320mm

powered motor parameters:

1.main drive motor:7.5Kw

2. rated voltage:380V 50Hz Continuous (S1) working standard

3.suction motor:7.5Kw

4.rated voltage:380V 50Hz Continuous (S1) working standard

main purchased parts,materials and place of origin:

Name of main parts	Brands or place of origin	Material and type
Wall and Pedestals	Production own	HT200
Rotary joints and metal hoses	Shan dong teng zhou luguanqiu
Main drive motor	Hebei Hengshui	7.5Kwspeed motor
bearing	HRB,ZWZ,CYC or Zhengjiang wanxiang
Seat belt bearing	Zhengjiang five rings
High pressure air	Shanghai Yingfa
cylinder	Zhengjiang Sanzheng
contacts	Chint or de li xi

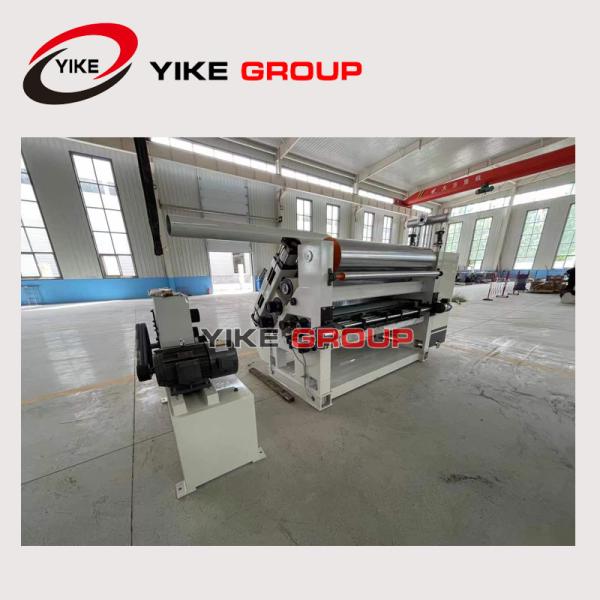

Vacuum Adsorption Single Facer For 3ply Corrugated Paperboard Production Line
