Name: Steam Heating 280S Fingerless Adsorption Single Facer
Brand: YIKE GROUP
Price: 1 USD

Brand Name : YIKE GROUP

Model Number : YK-280S

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1 Set Single Facer

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 Sets Per Month

Delivery Time : 30 Days After Deposit Of Single Facer

Packaging Details : Plastic Film,FCL

Voltage : according to customer request

Condition : New Single Facer

After-sales service provided : Engineers available to service machinery overseas,Online support,Field maintenance and repair service

Type : Packaging Line

Automatic grade : Automatic Single Facer

Driven type : Steam heating Single Facer

Dimension(l*w*h) : according to customer request

Packaging type : Cartons,Case,Film

Contact Now

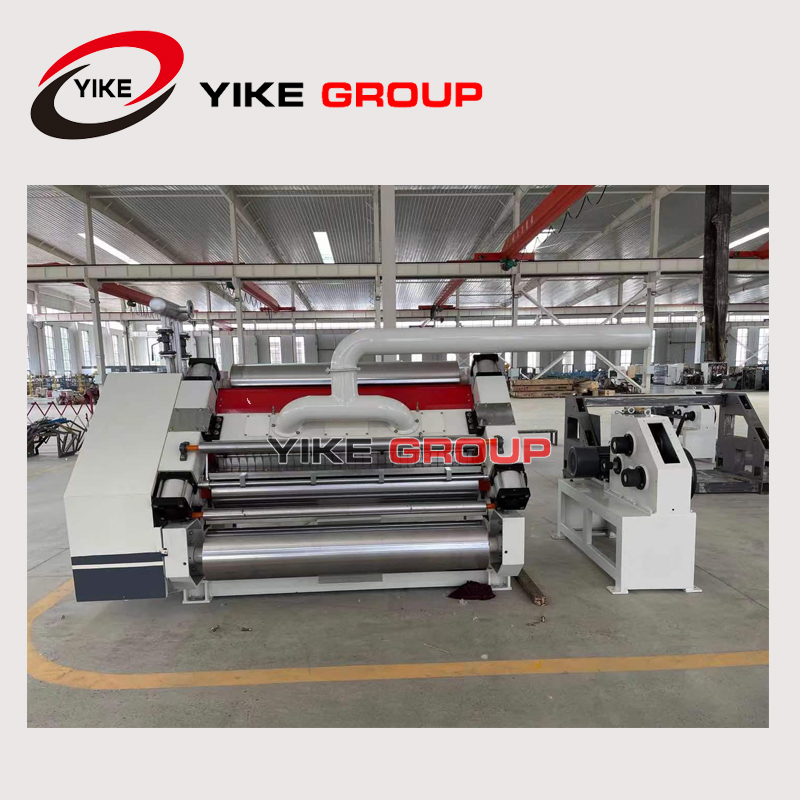

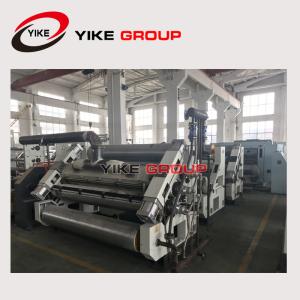

YK-280S fingerless type single facer(Steam heating)

Structural features:

1.Adopt vacuum suction structure, with high pressure strong blower. Suction with silencer

.2.base and wallboard cast iron wall, Wallboard thickness130mm.universal Joints.

3.corrugated roller material adopt 48CrMo Alloy steel.

4.pressure roller ¢ 284mm,surface grinding and chrome-plated; cylinder control and remove up and down

regular technical parameters:

1.effective width:1600mm

2.operation direction:left or right(determined in accordance with customer plant)

3.design speed:100m/min working speed:60m/min

main purchased parts,materials and place of origin:

Name of main parts	Brands or place of origin	Material and type
Wall and Pedestals	Production own	HT200
Rotary joints and metal hoses	Shan dong teng zhou luguanqiu
Main drive motor	Hebei Hengshui	7.5Kwspeed motor
bearing	HRB,ZWZ,CYC or Zhengjiang wanxiang
Seat belt bearing	Zhengjiang five rings
High pressure air	Shanghai Yingfa
cylinder	Zhengjiang Sanzheng
contacts	Chint or de li xi

Steam Heating 280S Fingerless Adsorption Single Facer
