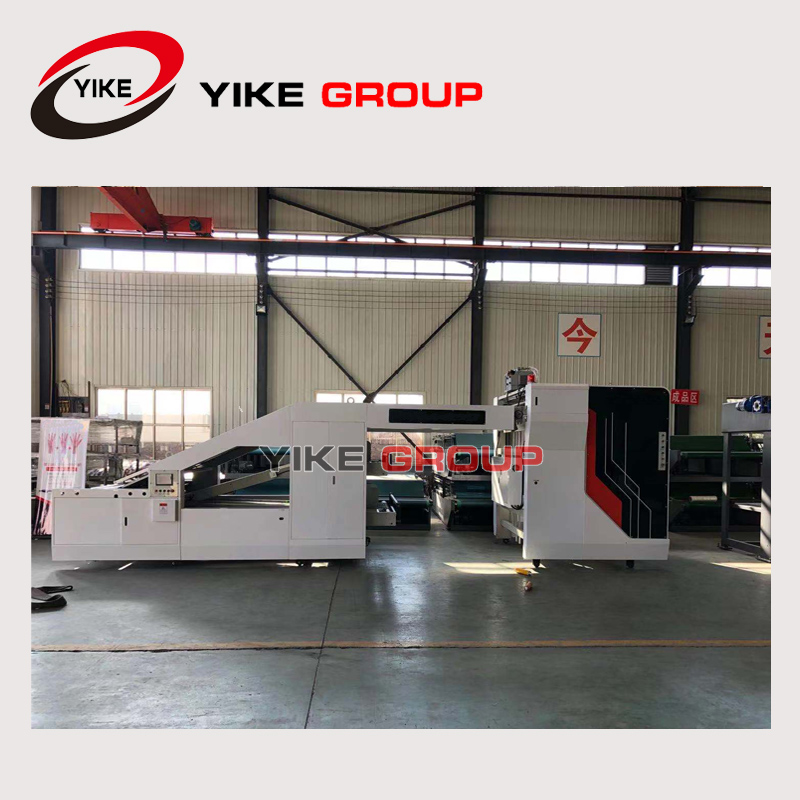

1450mm 5 Ply 6000pcs/H Flute Laminator Machine Fully Automatic

YKF AUTOMATIC 5 PLY FLUTE LAMINATOR MACHINE

CHINA YIKE GROUP CO.,LTD
WEB: www.yikegroup.net
Email: Anna@yikegroup.net

• Name:Fully automatic 5 layer flute laminator(Three in one)
• Model:YK-1300/1450/1600F
• Specification

In order to ensure the safe use of the machine, please connect the ground line according to the requirements.

• Introduction:

YK-F series fully automatic multilayer flute laminator is consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double bottom paper positioning section, cyclic gluing section, pressing section, delivering section and automatic collecting section. It suits to laminate the printed paper to the corrugated board or cardboard which is thicker than 350gsm, with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company domestic and overseas.

• Machine structure:

• Both bottom paper feeding section adopt vacuum sucking belt with high strength and high friction allowing the non-stop feeding. Rotating paper supporter equipped on this section makes it possible to feed the long sheet.
• Knurled roller on the bottom feeding part makes sure the stable running when the machine in a high speed.
• Chasing lay and high-speed axial flow fan differential positioning system is applied on the bottom paper feeding part. You can adjust the front and back position without stopping the machine. Synchronous slot design can control the bottom paper feeding in a minimum range; Chasing lay can make sure a good bottom sheet feeding when the machine is running at a high speed.
• PHOTOS OF YIKE GROUP

1 MACHINE CAN DO 3PLY/4PLY/5PLY 3 IN 1

5Ply Flute Laminator Machine Fully Automatic

1450mm Automatic Flute Laminating Machine

6000pcs/H Flute Laminator Machine

1450mm 5 Ply 6000pcs/H Flute Laminator Machine Fully Automatic Images
