YKMF-1600 3/4/5 Layer Automatic Flute Laminator Machine 1 Year Warranty

Name: YKMF1600 345 Layer Automatic Flute Laminator Machine 1 Year Warranty
Brand: YIKE GROUP
Price: 1 USD

Brand Name : YIKE GROUP

Model Number : YKMF-1600

Certification : CE,ISO

Place of Origin : China

MOQ : 1 Set 5 Ply Automatic Flute Laminator

Payment Terms : L/C, T/T

Supply Ability : 20 SETS Flute Laminator Per Month

Delivery Time : Within 1 Month Upon Receipt of Payment

Packaging Details : Automatic Flute Laminator Packaged by Plastic Film

Type : Laminating Machine

Packaging Type : Bags, Cartons, Film

Automatic Grade : Automatic

Warranty : 1 year

Application : Apparel, Beverage, Chemical, Co

Voltage : 380V/220V/415V

Contact Now

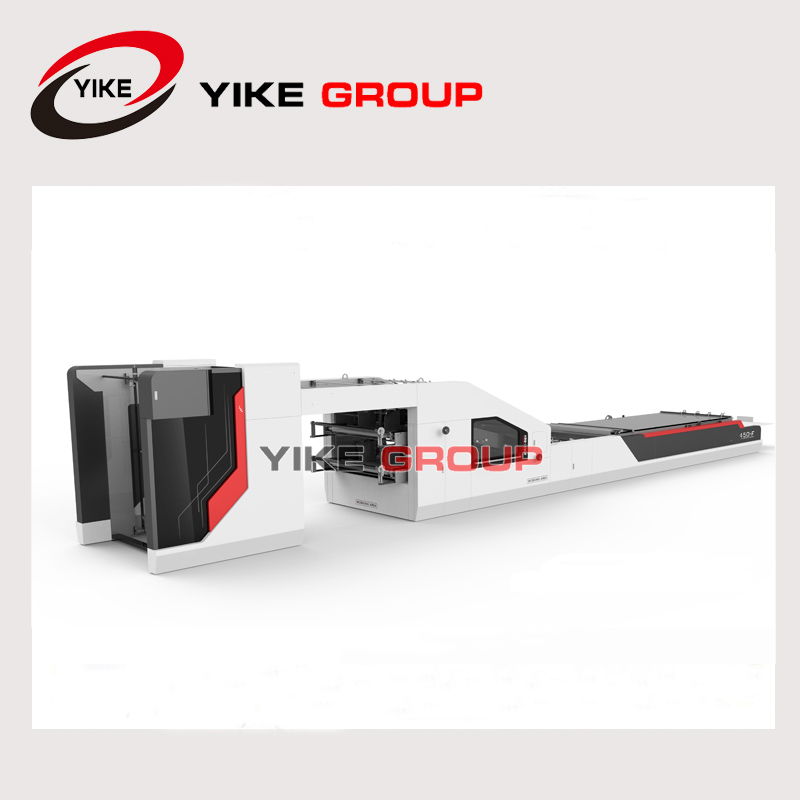

YKMF Automatic Flute Laminating Machine For Corrugated board

I: Name: Fully automatic multilayer flute laminator (Two in one or Three in one)
II: Model: YKMF-1300/1450/1600
III: YKMF series fully automatic multilayer flute laminator is consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double bottom paper positioning section, cyclic gluing section, pressing section, delivering section and automatic collecting section. It suits to laminate the printed paper to the corrugated board or cardboard which is thicker than 350gsm, with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company domestic and overseas.

IV: Specification

Name	Requirement
Model	YKMF-1600F
Max. Paper size(W*L)	1600*1300 mm
Min. Paper size(W*L)	600*600 mm
Face paper thickness	250-500 g/m2(standard paper board)
Flatness requirements on face paper	Curve height should less than 0.2 times of paper thickness
Requirements on film	Film ends should be less than 2 times of paper thickness
Bottom paper	A,B,C,E,F flute
Flatness requirements on bottom paper	Within 15/1000 mm

V: Parts

NO.	Name	Brand	Quantity
1	Touch screen	Siemens	1 piece
2	PLC	Siemens	1 piece
3	Servo motor	Dorna	2 sets
4	Frequency converter	Delta	5 sets
5	Main motor	China	2 sets
6	Lifting motor	China	2 sets
