Synthetic & Cotton Corrugator belts

Name: Synthetic amp Cotton Corrugator belts
Brand: YIKE GROUP
Price: 1 USD

China Synthetic & Cotton Corrugator belts wholesale

Brand Name : YIKE GROUP

Model Number : YK-HSD

Certification : ISO,CE

Place of Origin : China

MOQ : 30 Meters for Production Line

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 5000 Meters Corrugator Belt Per Month

Delivery Time : 1 Months For Corrugator Belt

Packaging Details : Corrugator Belt Packages By Wooden Box

Name : Corrugator Belt

Type : Normal Corrugated Belt

Size : Customized

Used for : Carton Production Line

Speed : 100-300m/min

Suitable for : Top and Bottom Belt

Contact Now

Corrugated Board Corrugator Belt For Corrugated Paperboard Production Line

Introduction

Corrugator belt also named Corrugated board conveyor belt.
Corrugator belt is for corrugated board production line and developed specifically for Double Facer. Corrugator belts consistently keep the fastest absorption & release of moisture, which secures high quality cardboards with less consumption of heat and energy, and higher speed is assured. Corrugator belt have been specially developed for the transport of board and optimization of the drying process ,they resist the stress continuously and achieve as long a life as possible.

Normal High Speed Corrugator Belt Features

5-layer woven fabric
Composition of cotton, synthetic and IFDY
High moisture absorption and release; Low noise and high speed
Woven structure, anti-skidding
Generally selected thickness is about 9-10mm, divided into medium speed belt, high-speed silent belt, etc., generally made of cotton + fiber.

Specification

Corrugator Belt
Model		YK-HSD
Material	100% PET SYNTHETICS
Speed	100-300m/min
Weight	7.6+0.2kg/m2
Thicknss	8-9mm
Width	1400-3200mm
Heat resistance	240℃(Kevlar 350℃)	240
Tension	65MPA
Air.permeability	2.0M3/M2MIN
Min.winding radius	R70(mm)
Life	40-50 MILLION METER

Application

Used for 2/3/5/7 ply Automatic corrugated cardboard production line, packaging industry. If you want to see more information about CORRUGATOR BELT, please here. It will provide more details about corrugator belt.

Accessories

Roller Lacer, Fasteners and After sales service for Corrugator belts lacing
Roller Lacers Available in width:
12’’ (300mm) 24’’ (600mm) 36” (900mm)48” (1200mm) 60” (1500mm)

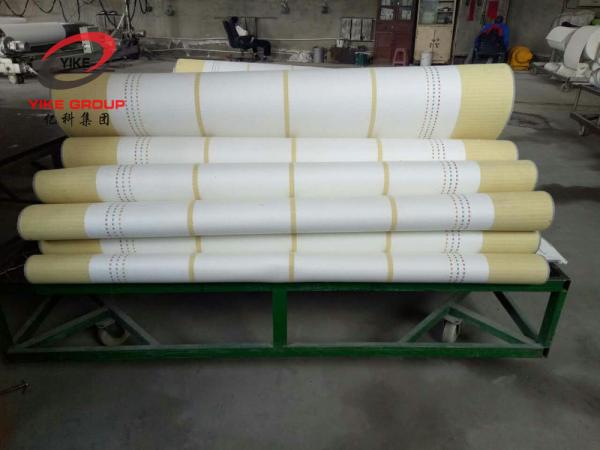

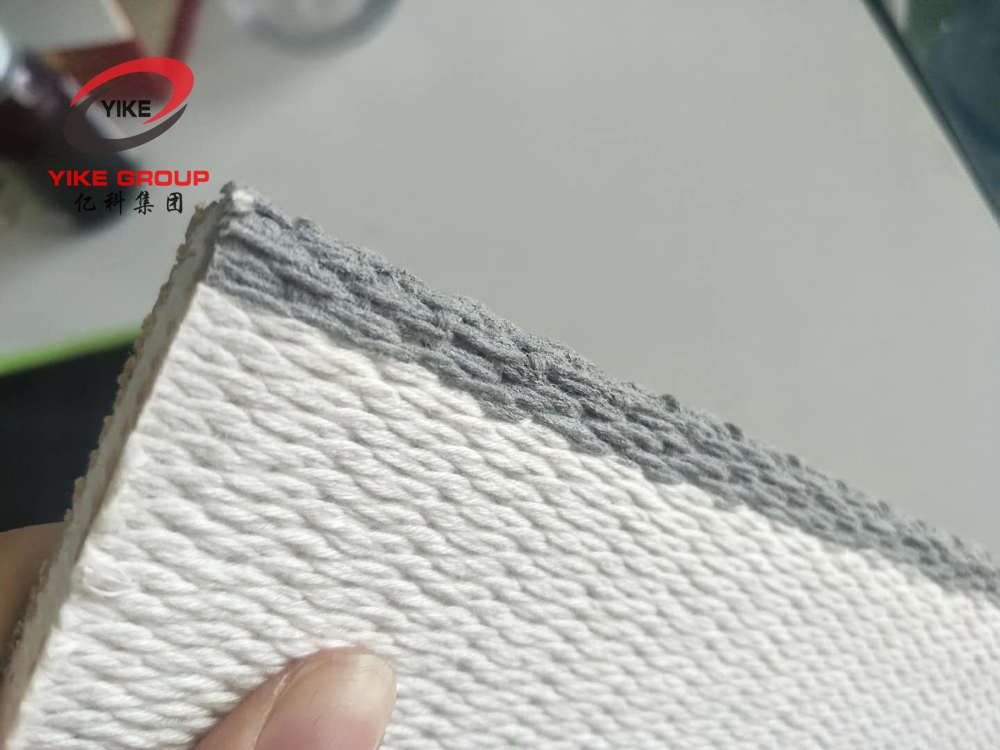

100% Real Photos

Synthetic & Cotton Corrugator belts
