Automatic 3 Layers Corrugated Cardboard Production Line For Paperboard Sheets
I Brief Introduction
The corrugated board production line consists of two relatively independent process sections of the wet end equipment and the trunk equipment.
The wet end equipment mainly includes the original paper tray, the automatic paper machine, the preheating pre-conditioner, the single-face corrugating machine, the paper-feeding bridge, gluing machine, double-facer machine, etc., wet-end equipment to make corrugated base paper into three, five, seven-layer corrugated cardboard with different flute type combination; cadre equipment mainly includes rotary cutting machine, slitting and creasing machine, cross cutting machine etc., the cadre equipment will carry out the slitting, cross-cutting and stacking of the corrugated board according to the order requirements.
II Automatic Production Line Advantages
- Improve quality
- Improve efficiency
- Save energy
- Save manpower
- Reduce consumables
- Reduce waste
III Main Machines For 200 Speed, 1800MM 3 Ply Cardboard Production Line
| Specification | Equipment name | UNIT | QTY |
| ZJ-V5 | Hydraulic shaftless mill roll stand | a | 3 |
| | Paper trolley | a | 6 |
| RG-1-900 | Top paper preheat cylinder | a | 1 |
| RG-1-900 | Core paper preheat cylinder | a | 1 |
| SF-360C1 | Fingerless single facer | a | 1 |
| RG-2-900 | Double preheater | a | 1 |
| GM-20 | Glue machine | a | 1 |
| TQ | Conveyor bridge | set | 1 |
| SM-E | Double facer | set | 1 |
| NCBD | NCBD thin blade slitter scorer | a | 1 |
| NC-30D | NC cutter helical knives | a | 1 |
| DM-XLM | Computer gantry automatic stacking machine | a | 1 |
IV SF-360C1 Fingerless Type Single Facer
- Adopt negative pressure design,use less heat,make the core paper can be pressed evenly and attached to the surface of the corrugated roller, make the corrugator shape better.Because the pressure is evenly,the top of the corrugator can be glued more evenly,make the single corrugated paper bond better.
- Corrugated roller use 48Crmo alloy steel, though heat treatment, surface through grinding make tungsten carbide treatment.
- Corrugated roller and pressure roller use high stability gasbag control system, also have air pressure control buffering function.
- Glue quantity control use electric adjust, glue isolation device electric, glue system can operate independently when main machine stop, to avoid glue use up.Glue tank is made of stainless steel.
- Movable type glue system, wash easily, maintenance and repair is more easy.
- Simple control system and touch screen system, with colorful pictures show the operate sate, function choice,faliure indication,exclude and parameter setting all can act out the machine’s multi function, easy operation and humanization.
- Preset device inside with spray system, adjust the core paper’s temperature and moisture.
- Main,vice corrugated roller and pressure roller bearing all use high temperature grease, to make sure the bearing working life longer and running smoothly.
- Pressure roller use unpowered structure, original design, advanced structure,greatly reduce the vibration and noise of the equipment at high speed.
- Both ends of the pressure roller equiped with weighing sensor, which can direct detect the pressure at both ends of the pressure roller.

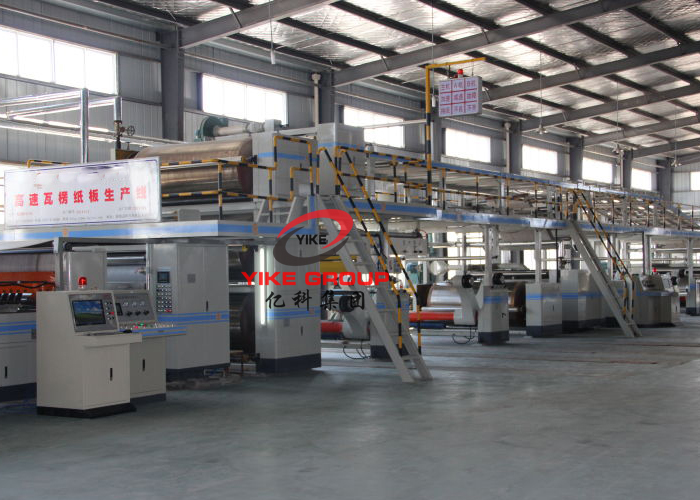

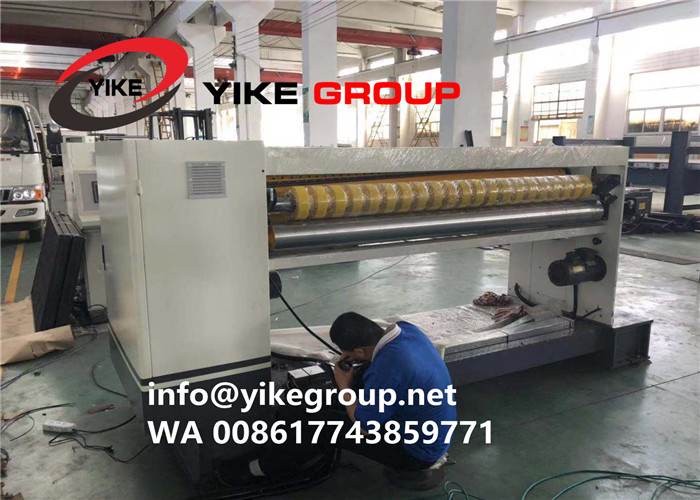

V 100% Real Pictures
